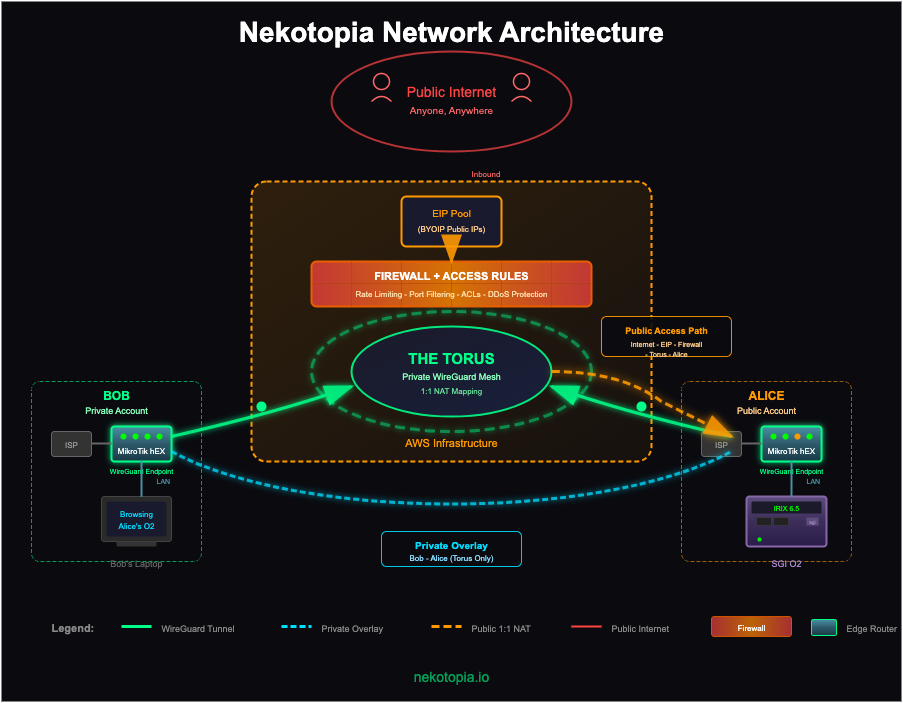

High Level Drawing

This is a logical drawing of the platform. At the core, we have our regional hub, arranged in a redundant ring. Edge users connect to one of the regional hubs and transit Ethernet or IP packets across the overlay fabric to resources.
